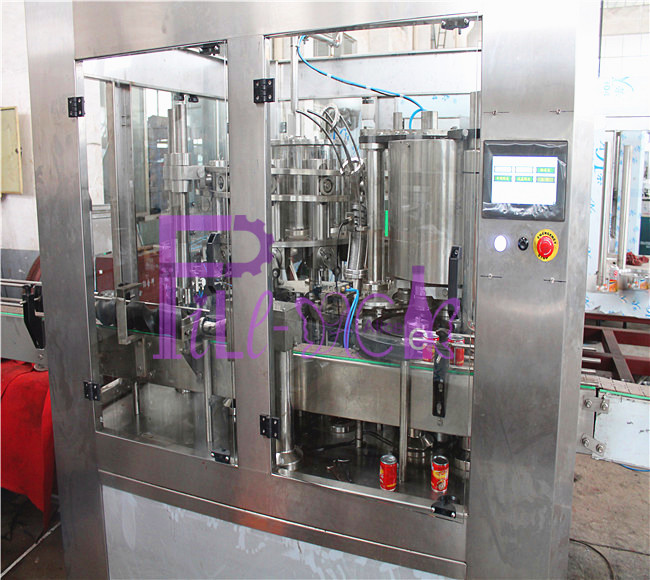

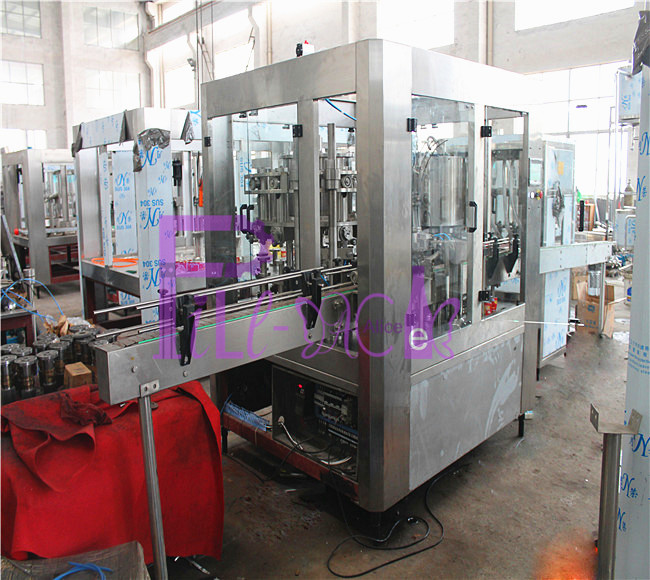

2 In 1 Rotary Sauce Filling Machine

    Title: 2 in 1 rotary sauce filling machine for hot pot sauce

    Key words: sauce filling machine, jam filling machine , sauce filler

Inquire Now
  • Quick Details
  • Detailed Descriptions
  • Packaging & Delivery
  • Services


    Model: HSGF12-4

    Brand: FILL-PACK

    Power: 3kw

    Voltage: 380V 3PH 50HZ or customized

    Driven force type: Electrical

    Automation degree: Automatic

    Dimension: 1800*1600*2000mm

    Weight: 2500 KG

    Application: sauce filling

    Packing category: bottle / can / jar

    Packing material: glass / metal / PET

    Condition: New


    Capacity: 8000 BPH (80g)

    Applicable bottle size: 0-200 g

    Key material: SUS316L

    Fuction: sauce filling

    Filling head qty: 12 pcs

    Sealing head qty: 4 pcs

    Origin: ZhangJiaGang, China

    After sales service: Engineers avaliable to service overseas

    Qualification: CE, ISO9001-2008

    It is used for filling and sealing for condense liquid such as oil/sauce packed in tin cans and also other cans; The cans can be connected with can washer with belt conveyor.

    Sauce filling machine:

    1) All liquid touching parts are made of SUS304

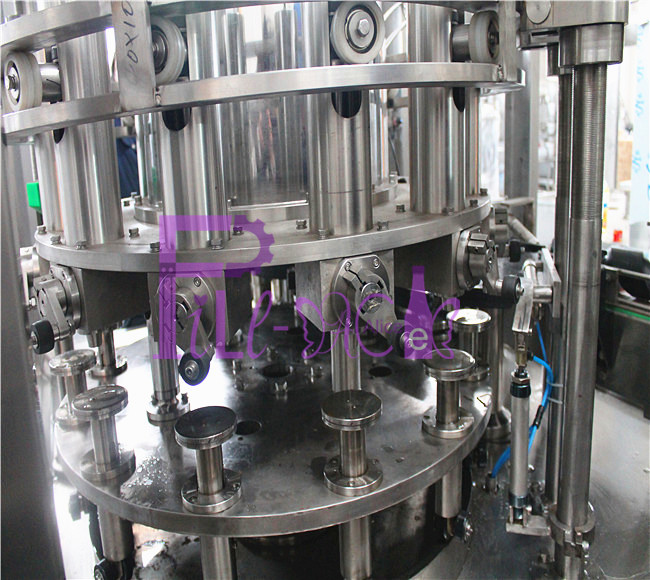

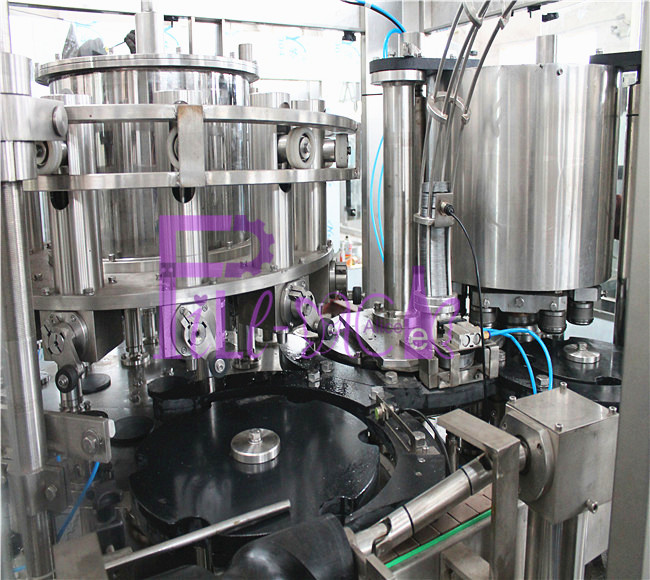

    2) The piston filling valve is introduced the advanced foreign design with precise filling lever, no hygiene corner pocket, a few sealing parts, and precise volume control. The whole valve is made of 304 stainless steel. The sauce will be stirred during filling to make sure average.

    3) The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

    4) The liquid supply adopts the piston to control the liquid automatically.

    5) The motivation of the filler is derived from the driven system in the framework and passed by gear.

    6) The filling volume will be adjusted easily by changing digit PLC system;


    Filling heads: 12pcs;

    Sealing heads: 4pcs;

    Capacity: 100-130cans per minute (60g)

    Power: 3 KW

    Dimension: 1800* 1600*2000mm

    Weight: 2500kg

    Pressure: max 0.4Mpa


    Touch screen




    Stabilized voltage supply




    Approach switch


    Air switch


    Sea worthy packing for sauce filling machine

    30 working days for sauce filling machine
