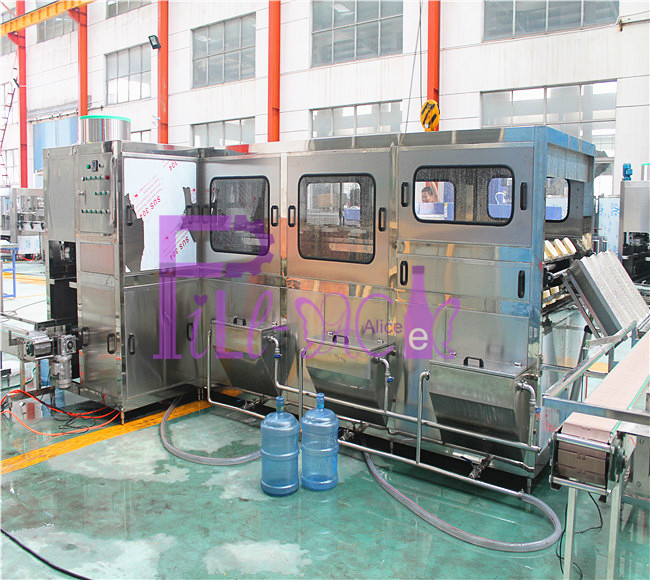

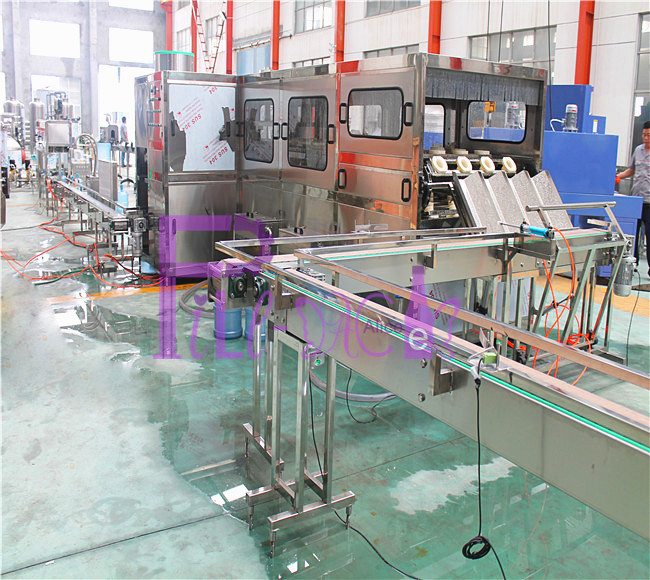

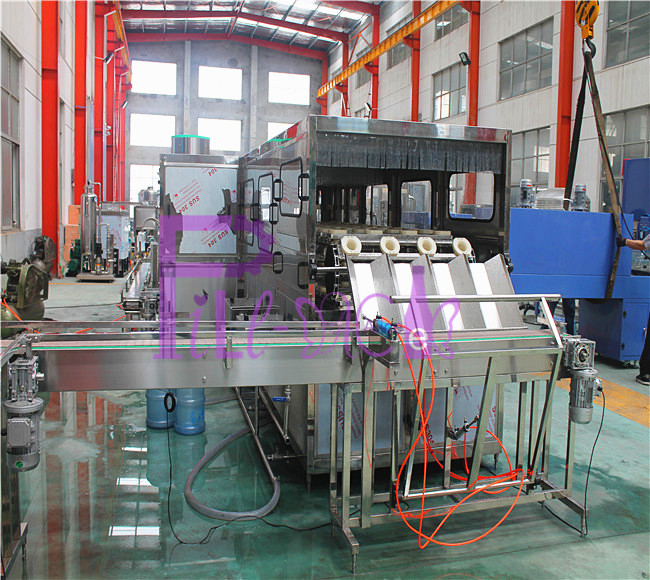

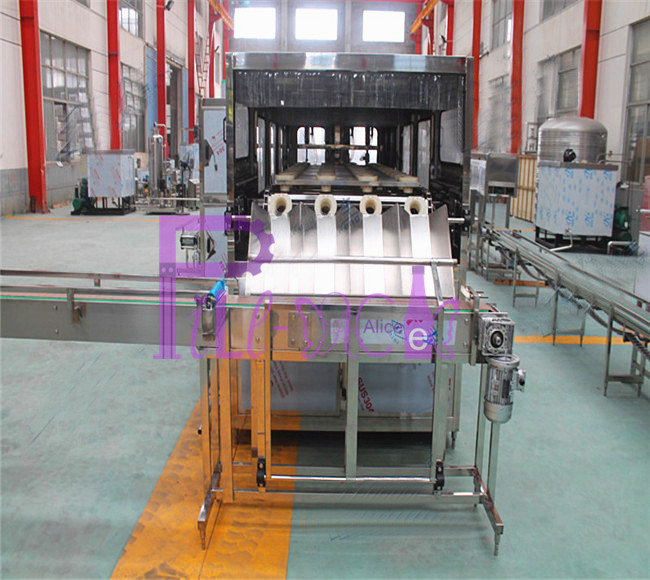

Title: 600 gallons per hour gallon water plant with 3 steps washing
Key words: gallon water plant, gallon filling machine, gallon bottling machine
QUICK DETAILS:
Model: QGF-600
Brand: FILL-PACK
Power: 1.5kw
Voltage: 380V 3PH 50HZ or customized
Driven force type: Electrical
Automation degree: Automatic
Dimension: 6000*1800*1800mm
Weight: 1000 KG
Application: gallon filling
Packing category: Gallon bottle
Packing material: PET PC
Condition: New
PROPERTIES:
Capacity: 0-600 BPH
Applicable bottle size: 5 gallon
Key material: SUS304
Fuction: gallon filling
Origin: ZhangJiaGang, China
After sales service: Engineers avaliable to service overseas
Qualification: CE, ISO9001-2008
600 gallons per hour gallon water plant with 3 steps washing
Main Technical parameters | |||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 |
Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 |
volume(L) | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
Barrel size(mm) | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 | φ 270× 490 |
Capacity(b/n) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 |
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption(m 3 /min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 |
Motor power(kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 |
Rated voltage(V) | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Outline dimension(mm) | 3790× 650 | 3550× 800 | 3550× 1200 | 3650× 1500 | 2200× 1860 | 2560× 2350 | 3100× 2800 |
Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 |
Sea worthy packing for gallon water plant
20 working days for gallon water plant
1, Pre-quotation communication to know customers’ excat requirement and give proper suggested frame;
2, Quotation offer as in advance communications;
3, Quotation explanations given if necessary;
4, Plant design and bottle-cap-label searching & design if needed after offer confirmed;
5, Contract signing basing on all discussed;
6, Production as contract items;
7, Inspection and delivery done as contract standard;
8, Technician service overseas as contarct agreed;
9, Whole life after sales service for spare parts;
