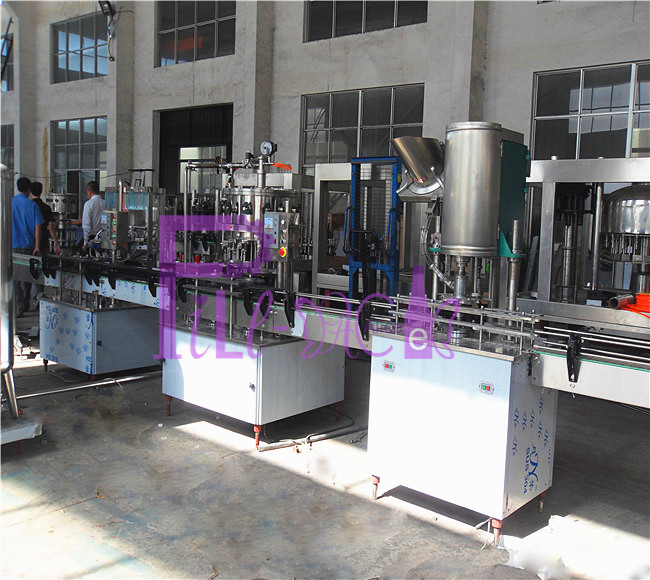

Carbonated Beverage Filler

The carbonated filling

machine is integrated with washing filling and capping together;

DGF series is used for carbonated drink packed in PET bottles;

The most advanced technology from Japan and Germany is employed in the design.

The bottle enters into the filling part of three-in-one machine by air conveyor through poking bottle star-wheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling.

The full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottle neck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through poking wheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 2 in 1 machine, in the bottom of the enclosed window has return air outlet

The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.

The frequency changing technology is used to adjust the operation speed sleeplessly.

Main parameters：

Description: Mono-bloc washing-balanced pressure filling – capping unit

Material: Body-SUS304

Rinsing pressure: 0.25-0.3Mpa

Filling temp: ≤4℃

Filling precision: ≤+1mm

Filling pressure: 0.25-0.4Mpa

Compressed air pressure: 0.4-0.6Mpa

Rinsing: bottle neck blocking (Germ tech)

Filling: Constant pressure filling (Germ tech)

Capping: Magnetic screw capping (Germ tech)
