Title: Monoblock 2 in 1 can filler with security device
Key words: can filler, can filling machine, can filling line
QUICK DETAILS:
Model: DGF12-1
Brand: FILL-PACK
Power: 1.5kw
Voltage: 380V 3PH 50HZ or customized
Driven force type: Electrical
Automation degree: Automatic
Dimension: 1800*1300*2000mm
Weight: 1500 KG
Application: can filling sealing
Packing category: Can
Packing material: aluminum / PET
Condition: New
PROPERTIES:
Capacity: 0-2000 BPH
Applicable can size: 0-350ml
Key material: SUS304
Fuction: can filling sealing
Origin: ZhangJiaGang, China
After sales service: Engineers avaliable to service overseas
Qualification: CE, ISO9001-2008

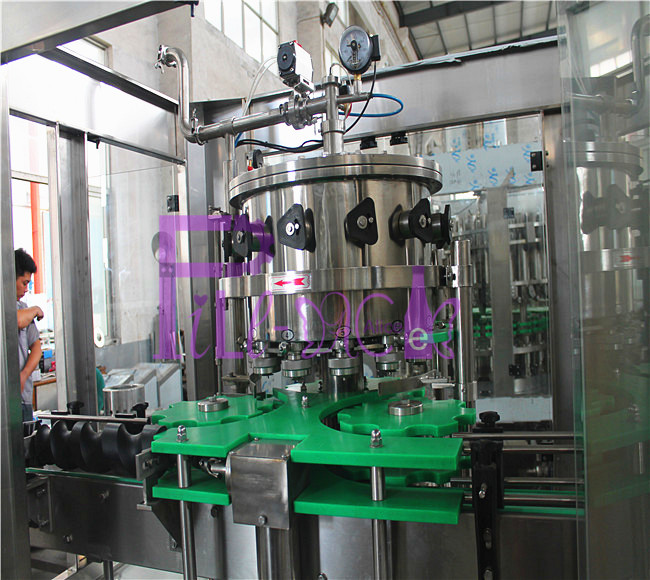

Principle of can filler
1, Can positioning by inlet screw, star wheel and ascending can lifting devices, then cans will be pressurized by the upper pressing cover press tightly on can tops;
2, CO2 flushing once the gas valve is triggered opening on preset position;
3, Can liquid filling proceeding when the inner can CO2 pressure same as liquid tank CO2 pressure, the liquid will be filled its own gravity and stop once reach lever spout preset filling volume;
4, Decompression: Gas valve is triggered closing on prset position and discharge valve to create inner can pressure same as enviromental pressure;
At the meantime, the inside lever spout liquid will fall down for lever spout clearing;
5, And then the can will be released by descending lifting device , outlet star wheel;
Sea worthy packing for can filler
25 working days after can-lid samples received
1, Pre-quotation communication to know customers’ excat requirement and give proper suggested frame;
2, Quotation offer as in advance communications;
3, Quotation explanations given if necessary;
4, Plant design and bottle-cap-label searching & design if needed after offer confirmed;
5, Contract signing basing on all discussed;
6, Production as contract items;
7, Inspection and delivery done as contract standard;
8, Technician service overseas as contarct agreed;
9, Whole life after sales service for spare parts;
